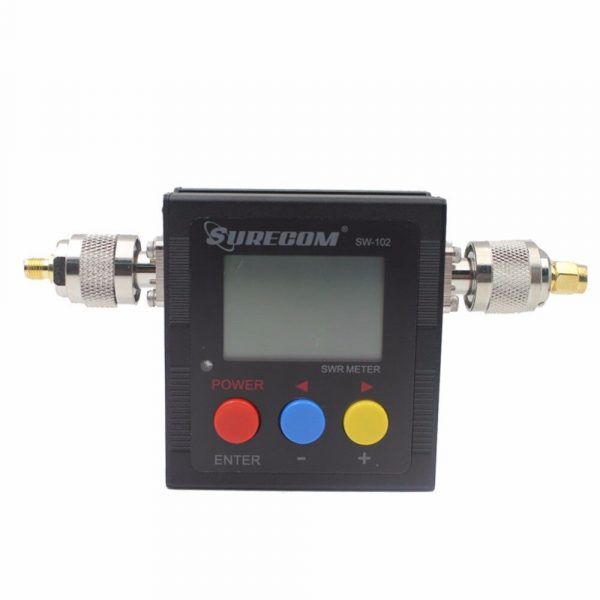

SURECOM SW-102 VHF UHF Power Meter 125-525Mhz Digital SWR Meter
$15.6
$20.59

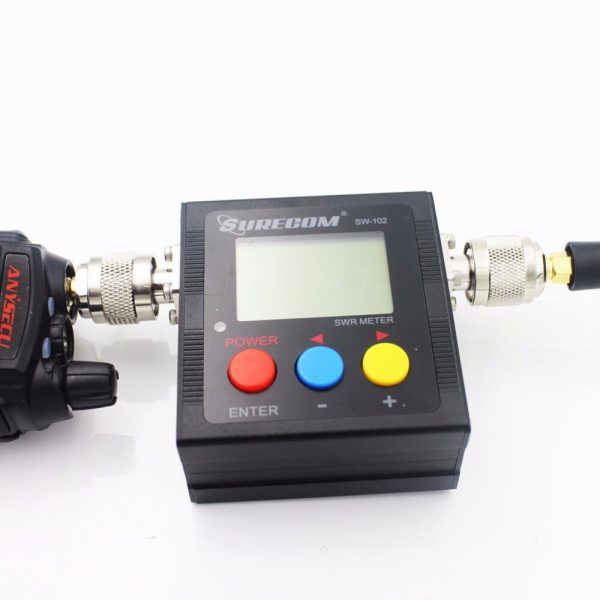

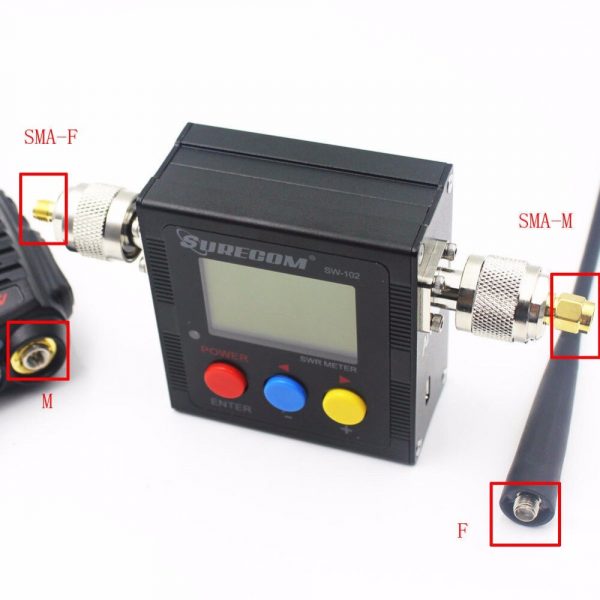

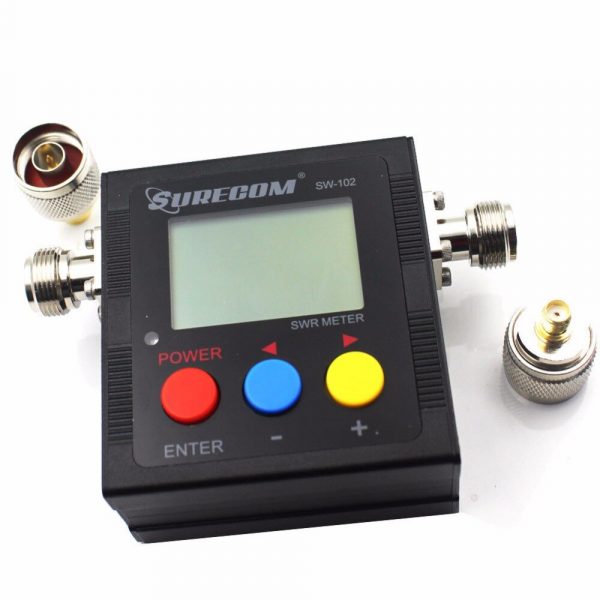

SURECOM SW-102 (With Two Connector) SW102 125-525 Mhz Digital VHF/UHF Power & SWR Meter Introduction VSWR. Forward and reflected power direct digital readout, without any calibration. Maximum measurable power range up to 120W. low insertion loss (0.3 decibels or less) structure allows it to be permanently connected. Build in Frequency counter . Feature & Specification Frequency range: 125 – 525MHz Measurable power range: 0 – 120W Maximum power: 120W Accuracy: mean / – 5% Impedance: 50Ω Size: W 76 X H 77 X D35 mm. Weight: <260 grams Interface: N-J Interface (SW-102 is not for DMR system) MAX. Power in 120 W V.S.W.R 1.00~19.9 Frequency Ranger COVER:125MHz~525MHz Insertion Loss < 0.15dB(VHF) , < 0.25dB(UHF) Temperature 0~60 Battery Build-in 14500 Li-ion Size 66*68*37 (mm) Power in 5V (micro usb) Backlight AUTO Interface (in and out ) N(SL16) or (M SO239 option) Weight <260g Connect the Output of your transceiver to “TX” and Antenna or Load to “ANT”. Proper adaptor/cable is required if your device has different type of connectors. Press the red Power button (RED and YELLOW) to power on.After 2 seconds of LCD self test, its ready for normal measurement. 2 minutes after no power was measured, it will power off automatically.Press and hold the red button for 2 seconds to turn off manually. Package Contents 1x SURECOM SW-102-UV Digital VHF/UHF Power & SWR Meter1x Power PSU 100-240V 1x Charger Cable 1x English Users Manual 1x Connector SMA-M to SL16 1x Connector SMA-F to SL16
