$25.39
$44.43

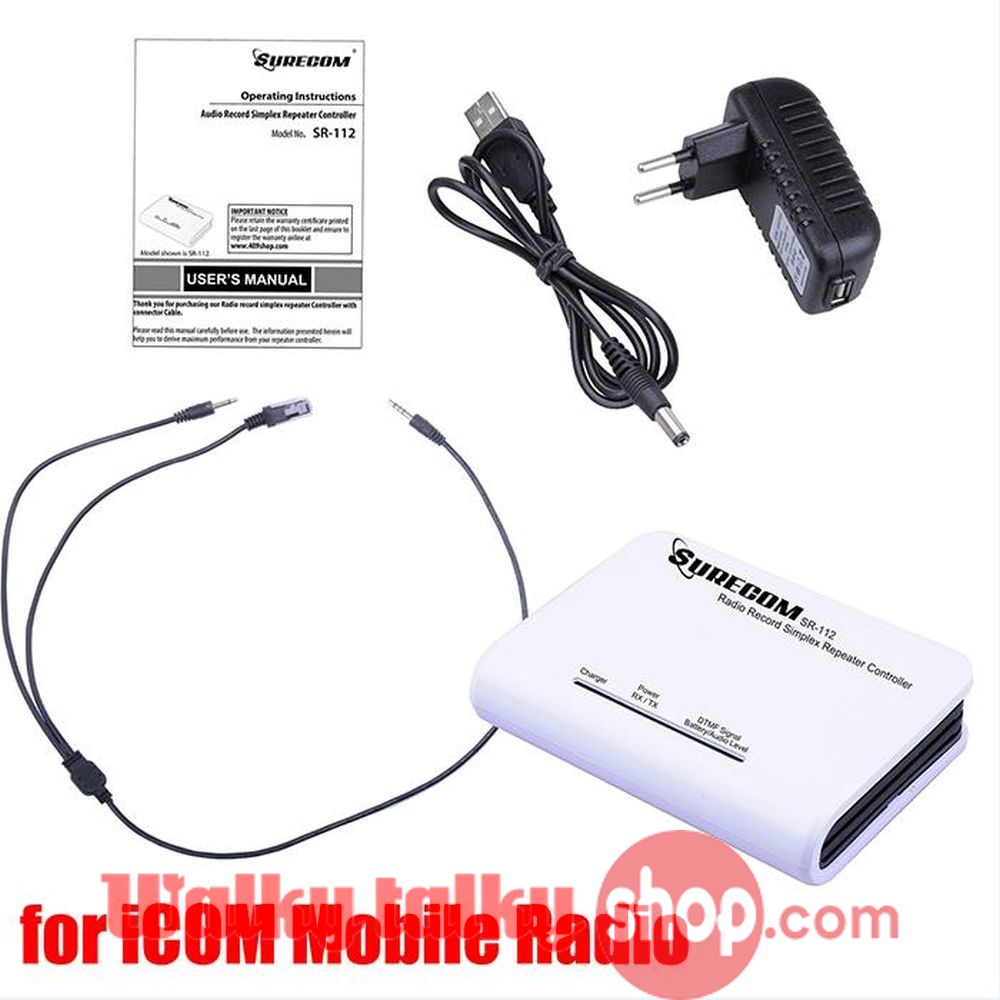

The SR-112 is a multi-function voice recorder device that connects to virtually any handheld, base, or mobile radio. It features exceptional voice recording quality and higher capacity than any other comparable device on the market. Simplex Repeater A simplex repeater records incoming transmissions and retransmits them on the same frequency. This has the effect of doubling the time required to transmit a message, but while a traditional repeater typically costs thousands of dollars and might be semi-portable at best, a simplex repeater can be set up with a single handheld radio and operated from batteries. This makes it perfect for disaster response, home or campground use, and any place where radio range needs to be extended but the cost and complexity of a traditional repeater can’t be justified. Voice Mail The SR-112 s voice mail function operates like a telephone answering machine, allowing users to record messages for later retrieval. Up to 3 incoming messages can be recorded, total recording message up to 180sec Auto message send system 15/30/45 minutes setting Major Features – 3 of message box for record – Auto Message send out at 15/30/45mins -Up to 180 seconds total recording time -DTMF remote control for all functions -19.2 KHz sample rate for excellent voice clarity -Operates from 14500 3.7V Li-ion or external 5-24 V DC supply -build-in rechargeable Lithium-ion battery support 72 hours long life operation -User to change the DTMF remote control password by radio -User set the Repeater Operates On/Off by DTMF -Audio output adjustable in hardware and by remote command -Audio in Level display -Auto Battery level display (20%~100%) -Provides audio Input level display ( for adj. best sound ) -Provides signal roger beep setting -DTMF signal display -Works with most popular CB,FRS, PMR, Amateur radios, Mobile Radio (optional of Cable) -1 year warranty on complete unit, 5 years on flash memory Features: Message Recording time: 180sec Build in 3.7V Li-ion Battery: 900MAH Ext.DC Jack 5.5/2.1mm: DC5V~24V Standby Time: 180hours Standby current: 4mA Work current: 20-30mA SIZE: 110×80×25mm Operating temperature: -10°C to 50°C LED DISPLAY Charge Red Charge/ DC in Blue Full Power Red flash Power on Blue flash Sleep mode Status Red RX Recording Blue TX send Build in Battery Life Red Blue 100% Red 80% Blue 50% Red blue Flash 40% Red Flash 30% Blue Flash 20% 1) Fit For ICOM Mobile Fit for Model : ICOM IC-2200H, IC-E208, IC-208H, IC-2100H,IC- 2720H, IC-2725E, IC-V8000 Fit for mic jack type : 8 PIN MODULAR HM-133V 2) Fit For Kenwood Mobile Radio : TK-271,TK-88,TK-471,TK-768 TK-7100, TK-8100, TK-7150, TK-8150, TK-7160, TK-8160, TK-7180, TK-8180, TK-7189, TK-8189 TK-7102, TK-8102, TK-7108, TK-8108, TK-7162, TK-8162 TK-7302, TK-8302, TK7360, TK-8360 TK-760, TK860,TK-760G, TK-860G, TK-780 TK-785, TK-885 TK-762, TK-862, TK-762G, TK-862G TK-763, TK-863, TK-763G TK-863G TK-768, TK-868, TK-768G, TK-868G TK-630, TK-730, TK-830, TK-740, TK-840, TK-750, TK-850 ,TK-980, TK-981 TK-880, TK-980, TK-780G, TK-880G, TK-5720, TK-5820 TKR-730, TKR-830, TKR-740, TKR-840 TKR-750, TKR-850, TKR-751, TKR-851 S-Plug Compatible Radio Models ICOM IC-T7H ,IC-W32A,IC-F3,IC- F3S,IC- F4, IC-F4S,IC- F4TR, IC-F10, IC-H2,IC- H6,IC- J12, IC-M5, IC-U12, IC-U16, IC-4008, IC-4088A Cobra (All 2-Pin) Motorola Talkabout 200, 250 Distance, Distance DPS Ritron Patriots Series RTX, SST, Jobcom, JMX, MBX, JMX-102, JMX-141, JMX-144,JMX-146,JMX-152, JMX-441, JMX-444,JMX-446, JMX-452, Patriot SST plus Motorola 5500 Vertex VX200-VX500- VX510-VX52OUD M-Plug Compatible Radio Models MOTOROLA CP88, CP100, CP150, CP200, CT150, CT250, CT450, CT450LS , ECP100, GP68, GP88S, GP308, GP350, GP2000, GP3688, GP3188, GTI, GTX, LTS2000, P040, P080, P110, P200, P1225, P1225LS, PR400, PRO1150,PRO2150, PRO3150, PMR446, SP10, SP21, VL50, VL130, Feidaxin FD-150A, FD-160A, FD-450A, FD-460A HYT TC-500 PUXING PX-508U , PX-999 KIRISUN PT578U , S760U , S765U , S780U , S785U MT-Plug Compatible Radio Models MOTOROLA TALKABOUT Motorola MOTO TLKR T5, Talk about 270, 280, 289, FR50, FR60, FV200, FV300, FV500, FV700, FV750, FV800, T4500, T4800, T4900, T5000, T5100, T5146, T5200, T5300, T5320,T5400, T5410, T5412, T5420, T5422, T5432, T5500, T5512, T5522, T5532, T5550, T5600 MYT MYTQ2V , MYTQ2U RONSON RT-88 TYT TH-2R , TH-UV3R S2-Plug Compatible Radio Models Maxon SP14, SP130, SP120, SP130, SPI140, SP300, SP310, SP320, SP330, SP340, SL25, SL55, SL55 , SL100K Midland – All 2-Pin 75-785, 75440, GTX-200, GTX-250, GTX-300, GTX-325, GTX-400, GTX-444, GTX-450, G-225, G-227, G-300, GXT500VP Y-Plug Compatible Radio Models YAESU FT-50,FT-60R,VXF-1,VX-1R, VX-2R. VX-3R, VX-5R,VX-8GR , VX-10, VX-110,VX-131, VX-150 ,VX-300, VX-410, VX-420, Vertex Standard VX-130,VX160, VX-168,VX180, VX-210, VX-210A, VX-400 ,VX-420, VX-427 SCONOV TM-800 , TM-810 Motorola 5500 HUITONG HT222 , HT333 Nanfone NF-6600 , NF-369 K-Plug Compatible Radio Models Baofeng BF-490, BF-568, BF-758S,BF-777S, BF-888S, BFF8-PLUS, BF-F9, BFK5,BF-V6, BF-V85, BJUV-6 ,C150, UV-3R , UV-5R,UV-5RA-plus, UV-5RB, UV5RC, UV5RD, UV-5RE,UV-5RG, UV-5RQ , UV-5RT ,UV-5S , UV-5RU UV-B5, UV-B6 BAOJIE BJ-UV88 , BJ-UV99 HYT TC-268, TC-268S, TC-270, TC-270S.etc.. Kenwood TK-240, TK-250, TK-255, TK-260, TK-260G, TK-270, TK-270G, TK-272G, TK-278, TK-278G, TK-340, TK-349, TK-350, TK-353, TK-360, TK-360G, TK-370, TK-370G, TK-373G, TK-378, TK-378G, TK-430, TK-431, TK-715, TK-2100, TK-2102, TK-2107, TK-2118, TK-2160, TK-31 Linton LT-2188, LT-2268, LT-2288, LT-3188,LT-3260, LT-3268,LT-3288,LT-5288, LT-6000, LT-6100,LT-6100plus,LT-6188, LT-6288, LT-6600, LT-9000, LT-9800 PUXING PX-325, PX-328, PX-333, PX-358, PX-555,PX-666, PX-728, PX-729, PX-777, PX-888, PX-888K, PX-V6 WOUXUN KG-659, KG-669, KG-679, KG-689, KG-699, KG-801, KG-816, KG-818, KG-819, KG-833, KG-889, KG-UV6D , KG-UVD1P QUANSHENG TG-2AT, TG-22AT, TG-25AT, TG-42AT, TG-45AT, TG-46AT, TG-6A, TG-K4AT, TGK4ATUV,TG-UV2 Feidaxin FD-A380, FD-55, FD-56, FD58, FD-68, FD-98, FD-278, FD-288, FD-289, FD-390, FD-760, FD-780 , FD-790, FD-850, FD-880, FD-890 (FD-288, FD-268-Earpiece only) JINGTONG JT-988, JT-N98 WEIERWEI V-1000, VEV-3288, VEV-3288S, VEV-V16, V8 WACCOM WUV-5R, WUV5RE-PLUS , WUV5R-UU , WUV-6R TYT TH-446,TYT-777, TYT-800, TYT-888, TYT-900, TH-F2, TH-F5, TH-F7, TH-F8, TH-UVF8D, TH-UVF1,TH-UVF9 RONGSHEUNG RT-626,RS-958,RT-966, RS-999, UV-8R MYT MYTQ1V , MYTQ1U NANFONE NF-669 GALAXY G6700, G-6800, Ronson RT-6000, RT-6100, RS-LY8, RS-H86 HUITONG HT910 , HT911 QYT UV9A-UU KIRISUN PT558 , PT560 Y-7 Compatible Radio Models YAESU FT-270 ,FT-277 , HX-471 ,VX-6R/E , VX-7R /E , VX-120 , VX-127 ,VX-170 , VX-177 , EACH UNIT PACKAGE CONTAIN: 1 x SR112 Radio record simplex repeater Controller 1 x 100-240V power supply unit or ( DC Cable W / PSU) 1 x Cable 1 x English Manual
Repeater Equipment
