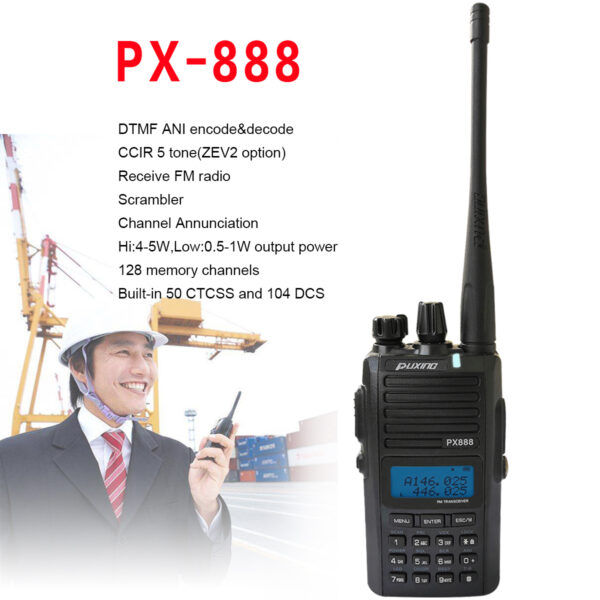

Puxing PX-888 VHF 136-174MHz UHF 400-470MHz Two Way Radio Main Features Memory channel capacity: 128 Output power: 4 to 5W Wide: 25kHz/Narrow: 12.5kHz Compatible; Come with 1,200mAh Li-ion battery; Input frequency by using keypad; VOX built-in; Scan function; three color LCD backlight display; emergency alarm; Programmable by PC; Bell ring when receiving signal; Priority scanning function; Adjust power Hi/Low; Switching between channel/frequency; Adjust squelch level (0 to 9); Busy channel lockout; Keypad lock Reverse frequency function; channel step 5, 10, 6.25, 12.5 and 25K; Selective call/Group call; DTMF ANI encode and decode, MDC1200 ANI option; CCIR five tone; Receive FM radio; Scrambler; Voice annunciation; Hi: 4 to 5W, Low: 0.5 to 1W Output power; Built-in 50 CTCSSand 104 DCS; Alphanumeric dot matrix LCD Three-color LCD backlight PX-888 General Frequency Range single band VHF:136-174MHz or UHF:400-470MHz Channel Capacity 128 channels Channel Spacing 25KHz(Wide Band) 20KHz(Middle Band) 12.5KHz(Narrow band) Phase-locked Step 5KHz,6.25KHz Operating Voltage 7.4 V DC Battery Life More than 12 Hours (1200mAh), Frequency Stability ±2.5ppm Operating Temperature -20°C 55°C Size 100mm×55mm×32mm (not including antenna) Weight 220g (with battery, antenna) Receiver (ETSI EN 300 086 standard testing ) RF Sensitivity ≤0.25μV Audio distortion ≤3% Audio Response 1~-3dB Adjacent Channel Selectivity ≥60dB Intermodulation Rejection ≥70dB Spurious Rejection ≥70dB Blocking ≥80dB Hum & Noise -45dB Audio output 500mW Transmitter (ETSI EN 300 086 standard testing ) Frequency Stability ±2.5ppm Output Power VHF5W/UHF4W Modulation Limiting ±2.5KHz Audio Distortion ≤3% Audio Response 1dB~-3dB Adjacent Channel Power ≥70dB/60dB Spurious Radiation ≤7.5uW Occupied Bandwidth ≤16KHz Each Set PACKAGE CONTAIN 1 x PUXING PX-888 Radio 1 x Charger with Adaptor 1 x 7.4V 1500mAh Li-ion Battery 1 x English instruction Manual 1 x Belt clip 1 x Antenna 1 x PTT earpiece
