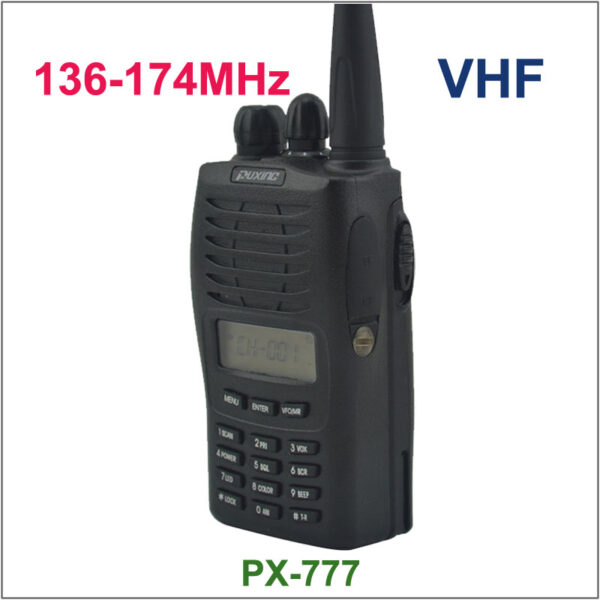

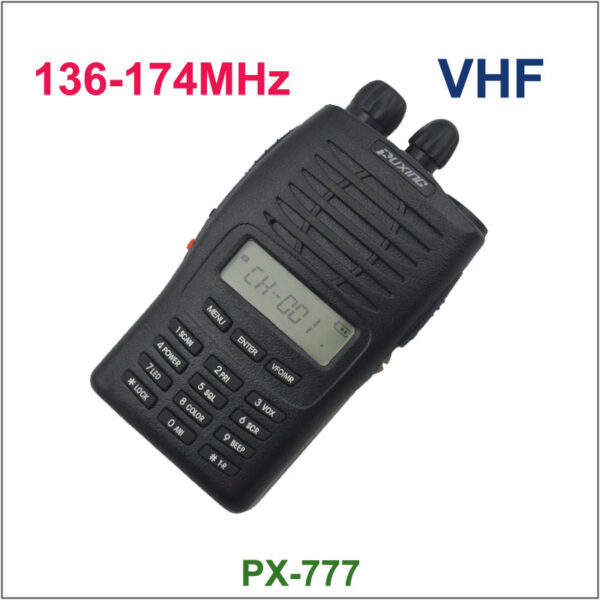

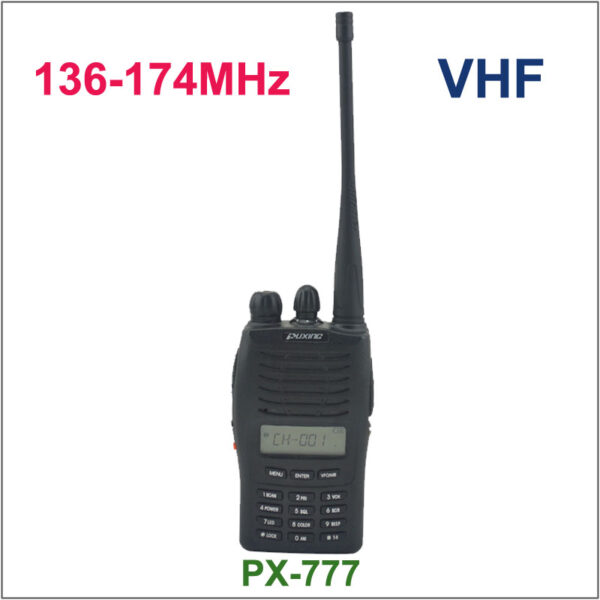

PUXING PX-777 VHF 136-174MHz PX777 Radio ham radio Features: 1. Amateur two way radio 2. Frequency :VHF136-174MHZ 3. 5w output power 4. 128 memory channels 5. Built-in 50 CTCSS and 104 DCS 6. Wide (25KHz) and Narrow(12.5KHz) channel, Spacing programmable in separate channels 7. Come with 1200mAh Li-ion battery/ 8. Input Frequency directly by keypad 9. VOX built-in 10. Frequency Scan & CTCSS Scan 11. Three different scan type: TO/CO/SE 12. Three color LCD backlight display 13. Sound Alarm 14. Programmable by PC software 16. Priority Scan Function 17. Adjust power High/Low 18. Switching between Channel/VFO 19. Display Channel Frequency mode. 20. Adjust squelch level (0-9) 21. Busy channel lockout 22. Keypad lock 23. Reverse Frequency Function 24. Channel step 5k, 10k, 6.25k, 12.5k, 25k, Program alphanumeric channels name 25. Self-program 26. Voice Annunciation Specifications: Generail Operating Voltage DC 7.2V Operate Mode Simplex or Semi-duplex Dimension 100*55*32mm (Not included Antenna) Weight 220g (Including battery) Antenna impedance 50Ω Transmitter Frequency Stability /-2.5PPM Output Power <=5W Max Frequency Deviation <=5KHz Audio Distortion <=3% Modulation Character 3dB–3dB Adjacent Channel Power >=65dB Spurious Radiation <=7.5UV(-36db for CE) Occupied Bandwidth <=16KHz Receiver RF Sensitivity <0.2UV(12DB SINAD) Audio Distortion <=3% Audio Response 2dB–10dB Adjacent Channel Selectivity >=60dB Intermodulation Rejection >=60dB Blocking >=80dB Package CONTAIN: 1×PX-777 VHF Radio 1×VHF SMA-F Antenna 1×PB-72L 200mAh battery pack 1×Desktop Charger with AC Adapter(Europe plug,UK plug,US plug all available) 1×ENG User Manual Picture:
