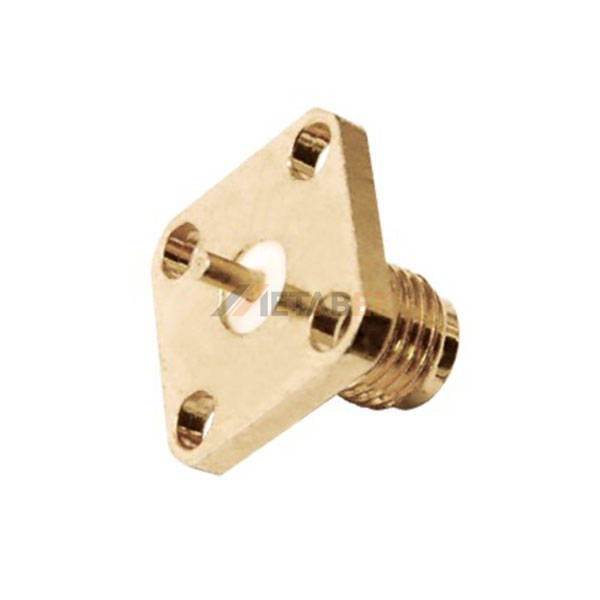

4-Hole Flange Panel Mount SMA Female Connector, Straight, 50 Ohm

4-Hole Flange Panel Mount SMA Female Connector, Straight, 50 Ohm Introduction This SMA connector is a high-performance, straight-type coaxial connector designed for reliable RF applications. It features a robust copper body with a gold-plated finish for excellent conductivity and corrosion resistance. The phosphor bronze contact, also gold-plated, ensures a stable and low-resistance connection, while the TEFLON insulator provides superior electrical properties across a wide frequency range. Engineered for precision, this 50 Ohm connector offers an impressive VSWR of 1.3:1 and operates seamlessly from DC up to 6 GHz. Its solder termination provides a secure and permanent connection to the cable. With a broad operating temperature range of -65°C to 155°C, this connector is built to maintain signal integrity and performance in demanding environments, making it an ideal choice for communication and instrumentation systems. Key Features: 4-Hole Flange for Secure Panel Mounting Gold-Plated Copper Body & Contact Low VSWR of 1.3:1 (DC to 6 GHz) Wide Operating Temperature: -65°C to 155°C Reliable Solder Cup Termination Main Specifications: General Information: Product No.: YC-612-0020   Product Series: SMA Connectors   Brand: Metabee   Gender: Female   Orientation: Straight   Number of Contacts: 1 Port   Contact Termination: Solder   Mount Method: Panel Mount   Mount Feature: 4-Hole Flange   Fastening Type: Threaded Coupling   Other Feature: None   Materials and Plating: Body Material: Copper   Body Plating: Gold-Plated   Insulator Material: TEFLON   Contact Material: Phosphor   Contact Plating: Gold-Plated   Electrical Performance: Impedance: 50 Ohm   Frequency Range:  0-6 GHz   VSWR: ≤1.3   Center Contact Resistance: ≦ 6.0 mΩ Max. (Milliohms max.)   Outer Contact Resistance: ≤ 2.0 mΩ Max. (Milliohms max.)   Insulation Resistance: ≧ 5*10³ MΩ (Megohms min.)   Mechanical Performance: Coupling: 1/4-36 Threaded   Contact Retention: 30 in. lbs. min.   Durability: ≥ 500 Cycles   Environmental Performance: Temperature Range:  -65°C to 155°C   Vibration: MIL-STD-202 Meth.204   Corrosion resistance: MIL-STD-202 Meth. 101   SMA Connector Interface Dimensions: Applications of this 4-Hole Flange Panel Mount SMA Female Connector: Telecommunication Infrastructure: antennas, cellular base stations, and satellite communications. Wireless Connectivity: Wi-Fi routers, Bluetooth devices, and RFID applications. RF Testing and Measurement: radar systems, instrumentation, and high-frequency testing equipment. Aerospace and Defense: radar systems, satellite communications, avionics, and military communication equipment. Medical Devices and Instrumentation: MRI machines, diagnostic equipment, and monitoring devices. Internet of Things (IoT): smart sensors and home automation systems Industrial: Active and passive components, instrumentation, M2M Communications, Vehicle Tracking System Download the RF Connectors PDF Catalog: Metabee's RF Coaxial Connectors Catalog (PDF, 3.7 MB) Learn more about our RF Coaxial connectors. Factory pricing and exceptional product quality. Get a free quote now! Metabee is a professional RF connector manufacturer from China. We can provide all kinds of RF connectors.
