On Sale Products
Bulkhead SMA Female Straight Connector, Panel Mount, 50 Ohm

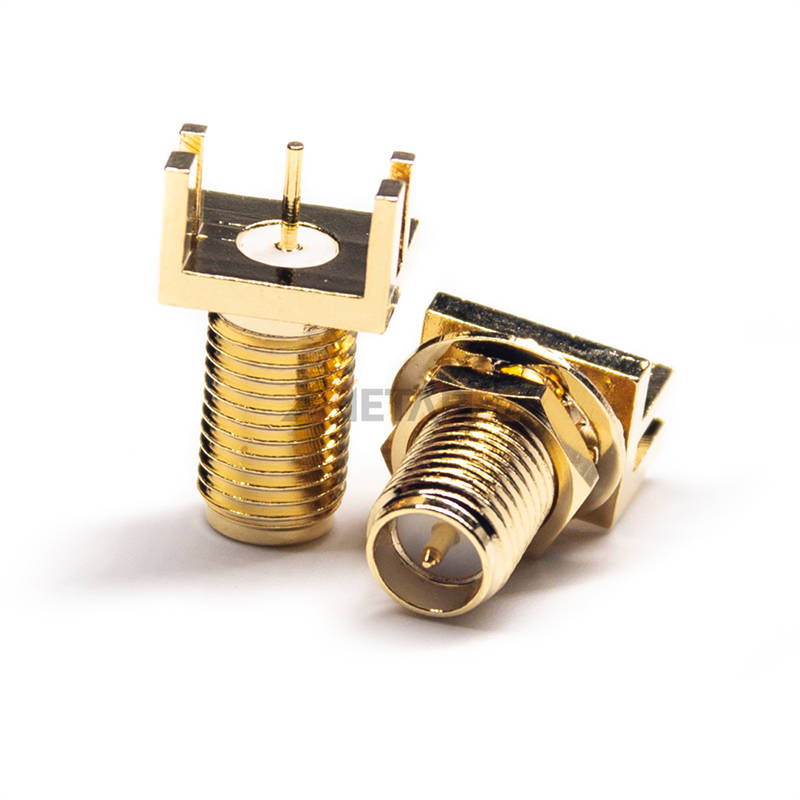

Reverse Polarity SMA Female PCB Edge Mount Connector, Straight, 50 Ohm
Sale!
Hermetic SMA Female PCB Through Hole Connector, 50 Ohm
$ 0.90
Hermetic SMA Female PCB Through Hole Connector, 50 Ohm Main Specifications: General Information: Product No.: DS806FPR104 Product Series: SMA Connectors Brand: Metabee Gender: Female Orientation: Right Angle Number of Contacts: 1 Port Contact Termination: Solder Mount Method: Panel Mount Mount Feature: 4 Hole Flange Fastening Type: Threaded Coupling Other Feature: None Materials and Plating: Body Material: Copper Body Plating: Gold-Plated Insulator Material: TEFLON Contact Material: Phosphor Contact Plating: Gold-Plated Electrical Performance: Impedance: 50 Ohm Frequency Range: 0-6 GHz VSWR: ≤1.5 Center Contact Resistance: ≦ 6.0 mΩ Max. (Milliohms max.) Outer Contact Resistance: ≤ 2.0 mΩ Max. (Milliohms max.) Insulation Resistance: ≧ 5*10³ MΩ (Megohms min.) Mechanical Performance: Coupling: 1/4-36 Threaded Contact Retention: 30 in. lbs. min. Durability: ≥ 500 Cycles Environmental Performance: Temperature Range: -65°C to 155°C Vibration: MIL-STD-202 Meth.204 Corrosion resistance: MIL-STD-202 Meth. 101 SMA Connector Interface Dimensions: Applications of Hermetic SMA Female PCB Through-Hole Connector: Telecommunication Infrastructure: antennas, cellular base stations, and satellite communications. Wireless Connectivity: Wi-Fi routers, Bluetooth devices, and RFID applications. RF Testing and Measurement: radar systems, instrumentation, and high-frequency testing equipment. Aerospace and Defense: radar systems, satellite communications, avionics, and military communication equipment. Medical Devices and Instrumentation: MRI machines, diagnostic equipment, and monitoring devices. Internet of Things (IoT): smart sensors and home automation systems Industrial: Active and passive components, instrumentation, M2M Communications, Vehicle Tracking System Download the RF Connectors PDF Catalog: Metabee's RF Coaxial Connectors Catalog (PDF, 3.7 MB) Learn more about our RF Coaxial connectors. Factory pricing and exceptional product quality. Get a free quote now! Metabee is a professional RF connector manufacturer from China. We can provide all kinds of RF connectors.
Related products
-
Select options This product has multiple variants. The options may be chosen on the product page
Girls Self Designed Premium Cotton Jacket Jumpsuit Dress | Floral Printed Jumpsuit Jacket Set for Birthday Girl
$ 0.901. Material – The apparel is made of Cotton Blend fabric. The highly comforting features like durability and lightweight of the fabric make the clothing set a must-have closet item. 2. Fit – Relaxed Fit – The clothing set is crafted keeping comfort of your kid as the priority. The soft cotton Blend fabric is …
90 Degree SMA Female 2 Hole Flange Panel Mount Connector 50 Ohm
Select options This product has multiple variants. The options may be chosen on the product page
Select options This product has multiple variants. The options may be chosen on the product page
