PCB Board Edge Mount SMA Connector, Straight, Panel Mount Type, 50 Ohm

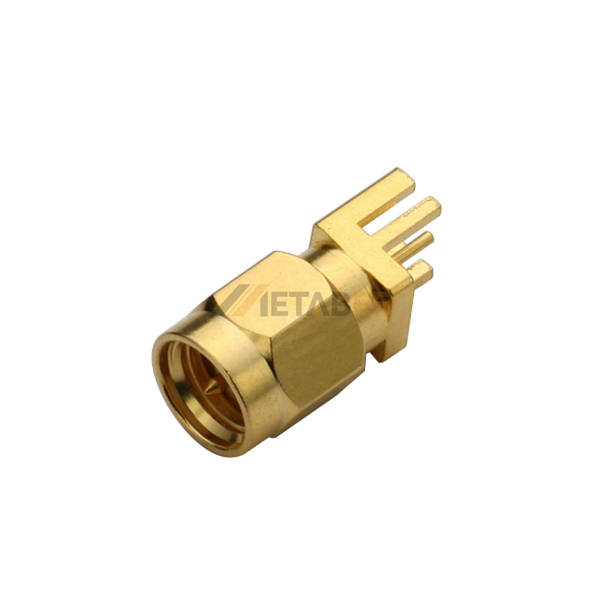

PCB Board Edge Mount SMA Connector, Straight, Panel Mount Type, 50 Ohm Introduction This PCB board edge mount SMA male connector is a cornerstone of precision and reliability. Its edge mount design ensures seamless integration into your circuitry. It provides a powerful and efficient solution for your RF applications. This SMA male connector has many great features, including: Edge Mount Design. This SMA connector has an edge-mount design. It allows you to attach this connector to the edge of the PCB boards. It offers a compact and space-saving solution. Easy Assembly. This SMA male connector is designed for ease of assembly during the PCB manufacturing process. It can streamline production workflows and potentially reduce assembly costs. Impedance Matching. Our SMA connector has a standard 50-ohm impedance. It ensures excellent impedance matching with your device’s interface. This is a key factor in RF design to prevent signal reflections. Flexible Applications. This edge-mount SMA male connector is suitable for various RF applications on PCB boards. For example, you can use it for antennas, RF modules, and test equipment. It’s a powerful choice for high-frequency connection applications. Main Specifications: General Information: Product No.: YC-612-0270   Product Series: SMA Connectors   Brand: Metabee   Gender: Male   Orientation: Straight   Number of Contacts: 1 Port   Contact Termination: Solder   Mount Method: PCB Mount   Mount Feature: Edge Mount   Fastening Type: Threaded Coupling   Other Feature: None   Materials and Plating: Body Material: Copper   Body Plating: Gold-Plated   Insulator Material: TEFLON   Contact Material: Phosphor   Contact Plating: Gold-Plated   Electrical Performance: Impedance: 50 Ohm   Frequency Range:  0-6 GHz   VSWR: ≤1.3 Max.   Center Contact Resistance: ≦ 6.0 mΩ Max (Milliohms max.)   Outer Contact Resistance: ≤ 2.0 mΩ Max (Milliohms max.)   Insulation Resistance: ≧ 5*10³ MΩ (Megohms min.)   Mechanical Performance: Coupling: 1/4-36 Threaded   Contact Retention: 30 in. lbs. min.   Durability: ≥ 500 Cycles   Environmental Performance: Temperature Range:  -65°C to 155°C   Vibration: MIL-STD-202 Meth.204   Corrosion resistance: MIL-STD-202 Meth. 101   SMA Connector Interface Dimensions: Applications of this PCB Board Edge Mount SMA Connector: Telecommunication Infrastructure: antennas, cellular base stations, and satellite communications Wireless Connectivity: Wi-Fi routers, Bluetooth devices, and RFID applications RF Testing and Measurement: radar systems, instrumentation, and high-frequency testing equipment Aerospace and Defense: radar systems, satellite communications, avionics, and military communication equipment Medical Devices and Instrumentation: MRI machines, diagnostic equipment, and monitoring devices Internet of Things (IoT): smart sensors and home automation systems Industrial: Active and passive components, instrumentation, M2M Communications, Vehicle Tracking System Download the RF Connectors PDF Catalog: Metabee's RF Coaxial Connectors Catalog (PDF, 3.7 MB) Learn more about our RF Coaxial connectors. Factory pricing and exceptional product quality. Get a free quote now! Metabee is a professional RF connector manufacturer from China. We can provide all kinds of RF connectors.
