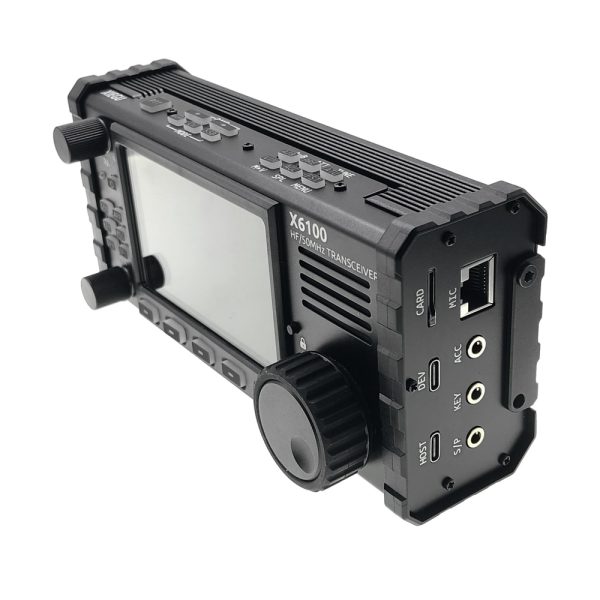

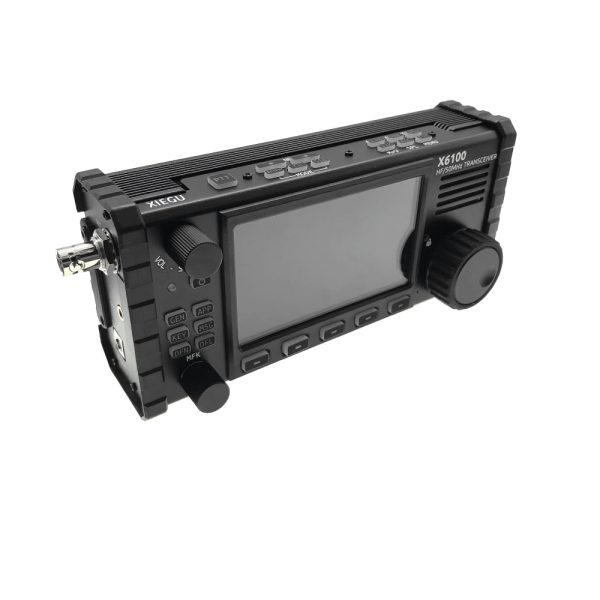

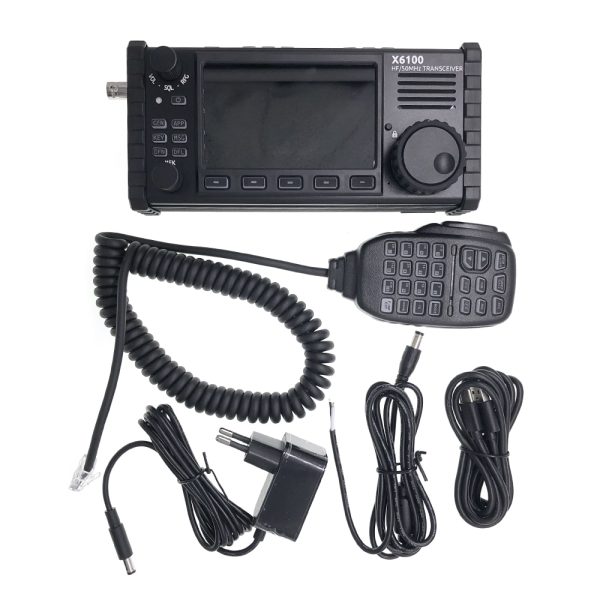

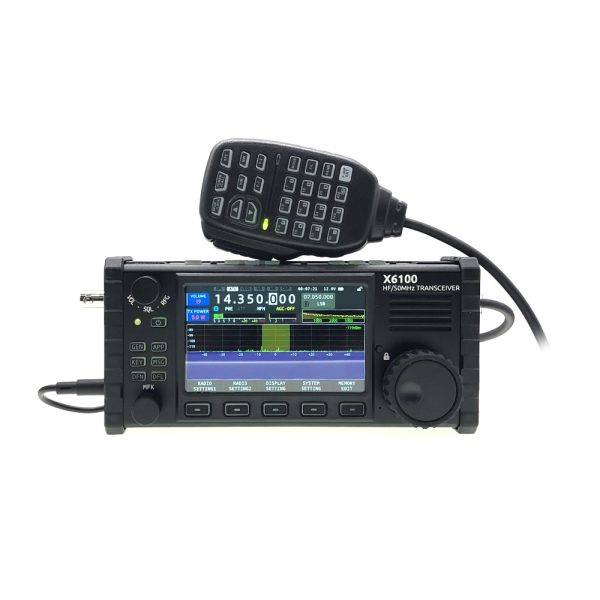

XIEGU X6100 50MHz All Mode Transceiver HF Transceiver Portable SDR Transceiver with Antenna Tuner

XIEGU X6100 50MHz All Mode Transceiver HF Transceiver Portable SDR Transceiver with Antenna Tuner XIEGU X6100 50MHz All Mode Transceiver HF Transceiver Portable SDR Transceiver with Antenna Tuner Features: ● HF/50MHZ full mode (supporting data communication) ● Transmitting power: external power supply: 10W, battery: 5W ● 4-cun high-resolution color screen (800*480) ● Built-in large capacity lithium battery pack (3000mAh, 12V) ● Built-in efficient automatic antenna tuner ● Integrated standing wave scanner and voice pager ● Integrated modem, preset message, CW automatic call ● Built-in Bluetooth/WLAN function, which can realize wireless audio, keyboard andmouse operation ● Integrated USB line control/transmission, supporting USBHOST. ● Standard high-stability TCX0 internal clock source Parameter & specification: Frequency range: receiving: 0.5MHz~30MHz 50.00~54MHz Transmitting: 1.8~2.0MHz 3.5~3.9MHz  7.0~7.2MHz 10.1~10.15MHz 14.0~14.35MHz 18.068~18.168MHz 21.0~21.45MHz 24.89~24.99MHz 28.0~29.7MHz 50.00~53.99MHz Working mode: CW,AM, SSB, FM Minimum stepping: 1Hz Antenna impedance: 50Ω Working temperature range: 0°C~ 55°C Frequency stability: ±1.5ppm within 10~30min after startup @25°C: 1ppm/hour Supply voltage: 9.0~15.0VDC, negative electrode grounding Current consumption: receiving: 330mA@Max transmitting: 3A@Max Dimensions: 180*86*49mm (L*W*H) (not including protrusions) Weight: about 880g (host only) Transmitter parameters RF output power: 10W (SSB/CW/FM) @13.8VDC 2.5W (AM carrier wave) @13.8VDC 5W (SSB/CW/FM) @ battery 1.5W (AM carrier wave) @ battery Spurious suppression: 1.8~29.6MHz: ≥50dB 5(T54MHz:≥60dB Carrier suppression: ≥50dB Microphone impedance: 200~10k (600Ω in general) Receiver parameters Circuit type: ZIF Sideband suppression: Ω50dB MDS:-138dB Sensitivity: Frequency band mode SSB/CW FM AM 0.5~1.79999MHz / / 10uV 1.8~1.99999MHz 0.35uV / 10uV 2.0~27.9999MHz 0.20uV / 2uV 28.0~30.0MHz 0.20uV 0.22uV 2uV 50.0~54.0MHz 0.20uV 0.22uV 2uV (PRE=o50.0 ~ 54.0MHz N,ATT=off, NB=off, NR=off, SSB/CW/AM=l0dB S/N, FM=12dB SINAD) 34 Audio output: 0.4W(8Ω, ≤10%THD) Audio output impedance: 4~16Q Antenna tuner Tuning range of antenna tuner VSWR: 1:4.5 First tuning time: ≤15s Memory load tuning: ≤0.2s Wireless network/Bluetooth Package Included: – 1 x GSOC Controller – 1 x Power Cable – 1 x I/Q Audio Connection Cable – 1 x DB9 Data Control Cable – 1 x Operation Manual
