Xiegu GSOC Multi-function Controller for X5105 G90 / G90S External Extension Control

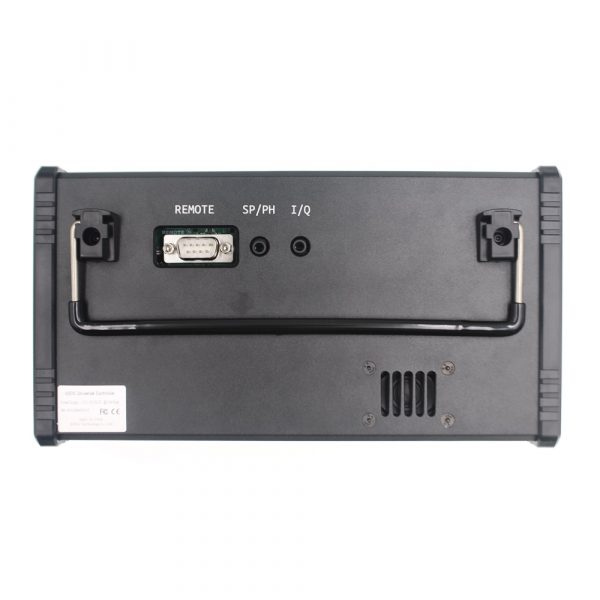

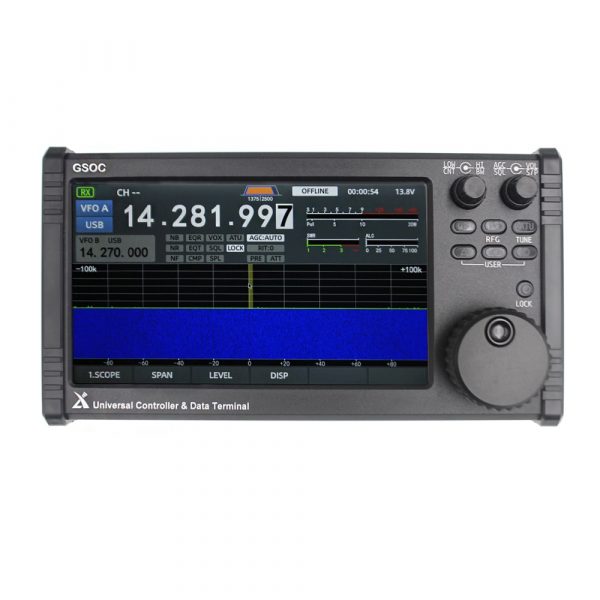

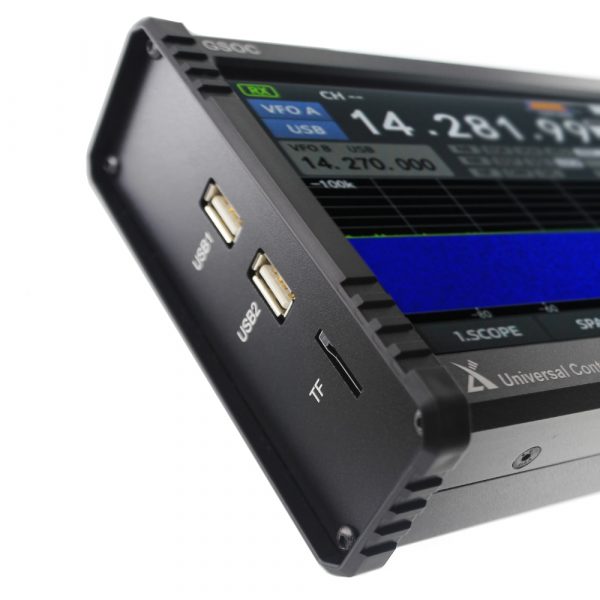

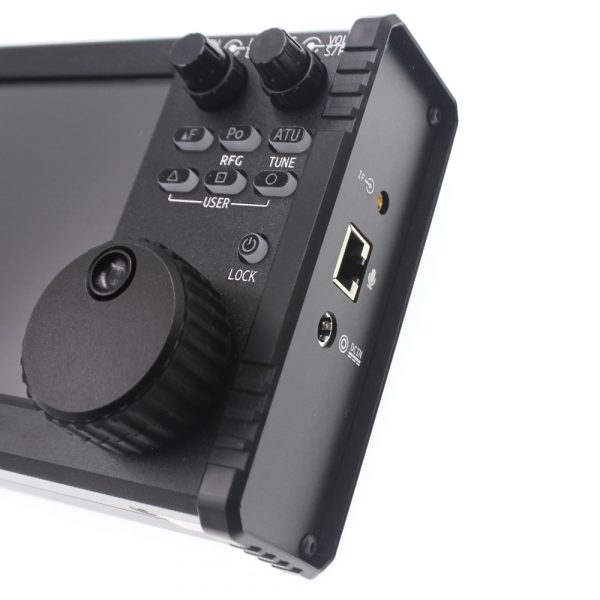

Xiegu GSOC Multi-function Controller for X5105 G90 / G90S External Extension Control  GSOC Construed as Operation panels of X5105, G90S and G90, After connection will add control, spectrum, and waterfall plot Data encoding/decoding terminal, Rear with loudspeaker, and Loudspeaker socket, Side with microphone jack, Support full screen touch, mouse and keyboard, Big frequency knob, USB standard interface X 2, TF memory card and application, WIFI & BLUETOOTH automatic speech or text call etc.  System Features and Parameters External dimension (without protrusion): 225*123*45 mm DSP Parameters: 24bit ADC, 200kHz spectrum and waterfall plot, bandwidth format, support NFM/AM/USB/LSB/CW Screen size and resolution: 7”, 1024×600 pixel, full color Screen touch: capacitive sensing Frequency knob: photoelectric high precision sensing Voltage range: 10.5-16.5 V Model: G90S/G90/X5105 (more in the future); communication interface: 9-pin, [I/Q 3.5 mm], [IF MCX], etc.; microphone jack: LAN RJ45 standard 8-pin Loudspeaker connector: 3.5 mm Weight: 1.2 kg GSOC backward compatible with the next generation of XIEGU products Network access to external WIFI
