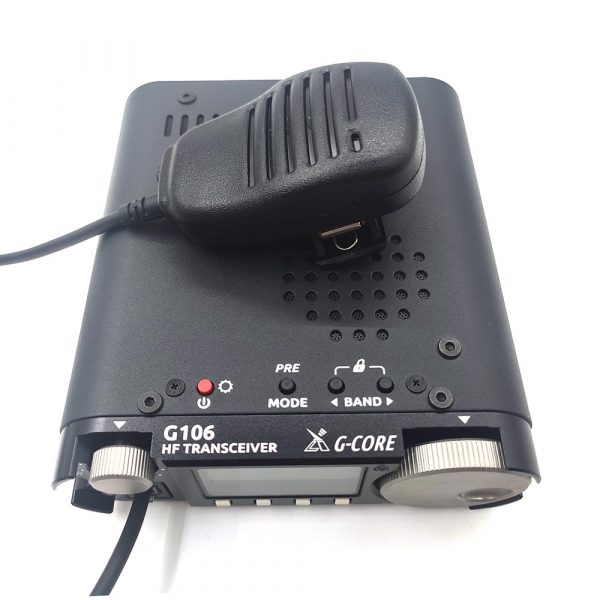

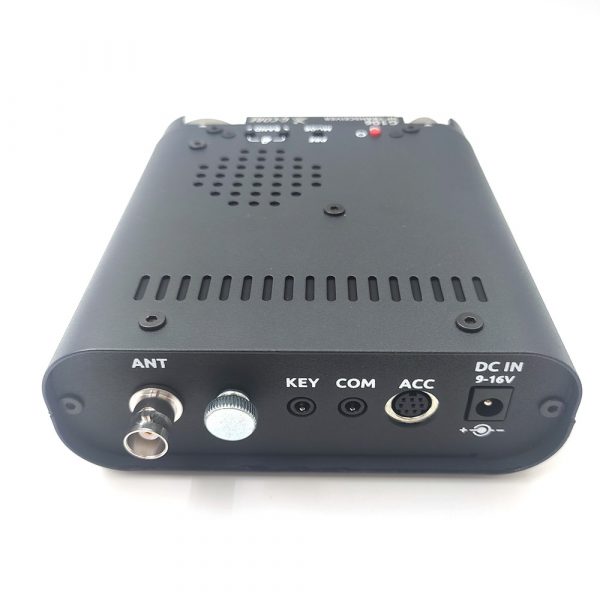

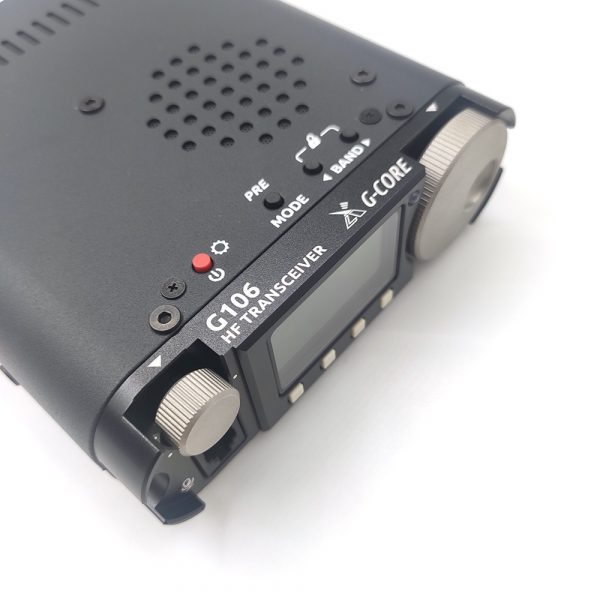

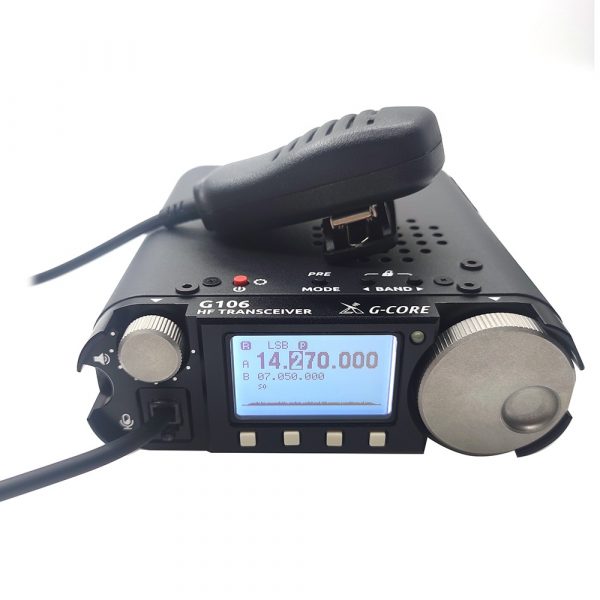

Xiegu G106C HF Transceiver SDR SSB CW AM Three Modes WFM Broadcast

Original XIEGU G106 HF Portable Transceiver SDR 5W SSB CW AM Three Modes WFM Broadcast Reception G106 is a 5W portable QRP model with SDR circuit structure which uses 16bit-CODEC sampling and can deliver superior performance. The whole machine has SSB/CW/AM three modes and extra WFM (88~108MHz) receiving function, allowing you to listen to local FM broadcasts while communicating. Equipped with a CW digital filter with three bandwidths, it can help you connect to more and farther radio stations. With the external DE-19 digital adapter (optional), it can be easily connected to the computer and complete FT8 communication. As an entry-level portable SDR transceiver, G106 will be a good helper for you to play CW and FT8.   Basic features:  High-performance SDR core circuit  Compact and robust structure Transmission and receiving of all amateur frequency bands within 3.8~29.7MHz WFM broadcast receiving  Shortwave full-range continuous receiving  Amateur data communication available  Computer online control available   Specifications   Receiving frequency: 0.55～30MHz   88～108MHz（WFM） Transmitting frequency: 3.5～3.9MHz                 7.0～7.2MHz 10.1～10.15MHz          14.0～14.35MHz 18.068～18.168MHz      21.0～21.45MHz 24.89～24.99MHz      28.0～29.7MHz   Operating mode: SSB/CW/AM                             WFM (receive only) Receiving sensitivity: CW: 0.25uV @10dB S/N                                     SSB: 0.5uV @10dB S/N                                     AM: 10uV @10dB S/N Frequency stability: ±1.5ppm within 30min after power on                                   @25°C: 1ppm/hour Transmitting power: ≥5W @13.8V DC Transmitting spurious suppression: ≥50dB Audio output power: 0.3W Operating voltage:9～15V DC Standby current:0.37A @Max Transmitting current:2.8A @Max Dimensions:120*40*135 (mm) Weight:About 720g (only host)   ○ All specifications are typical and apply toamateur bands only. Due to technicalimprovements, the above specifications aresubject to change without notice. ○ The operating frequency range of transceiverssold in different countries or regions will be setaccording to local regulations. Ask local dealerfor details.   Connection of External Power Supply EMC ferrite bead can be applied on power lines to prevent external disturbance from entering radio via power lines and radio- frequency interference in radio from radiating externally via power lines when external power supply is adopted for G106. Ferrite bead shall be installed at the side closing to power plug to greatest extent.   Polarity of power lines shall be carefully inspected to avoid reverse polarity connection when external power supply is adopted. The limited warranty of the radio does not cover damage caused by an error in external power connection or damage caused by an abnormal power voltage. Packing list G106 host 1 set Standard hand microphone 1 no. Power line 1 pc. Warranty card 1 copy Manual 1 copy Certificate of conformity 1 copy
